Versa-Lift 100/140
Versa-Lift 100/140

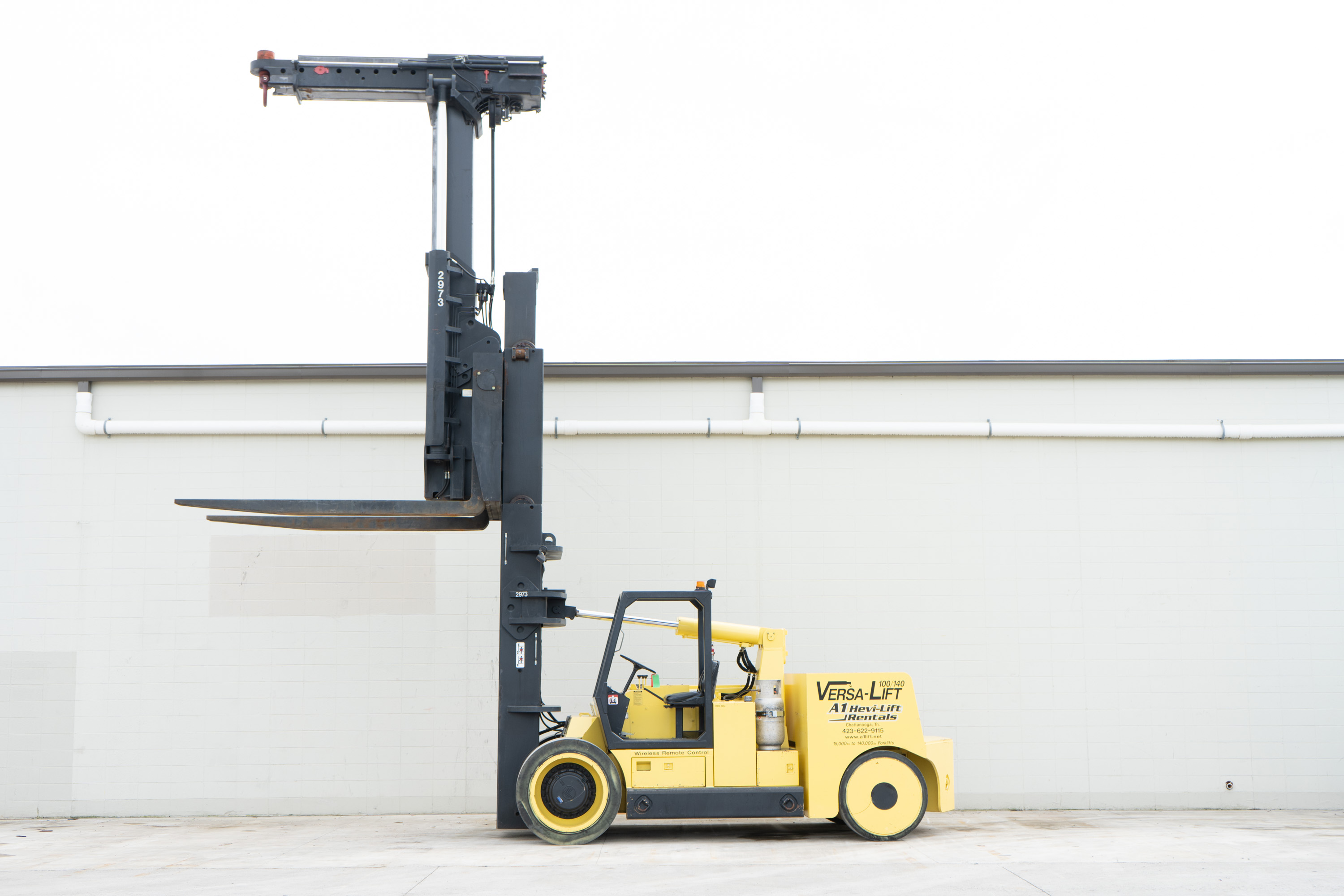

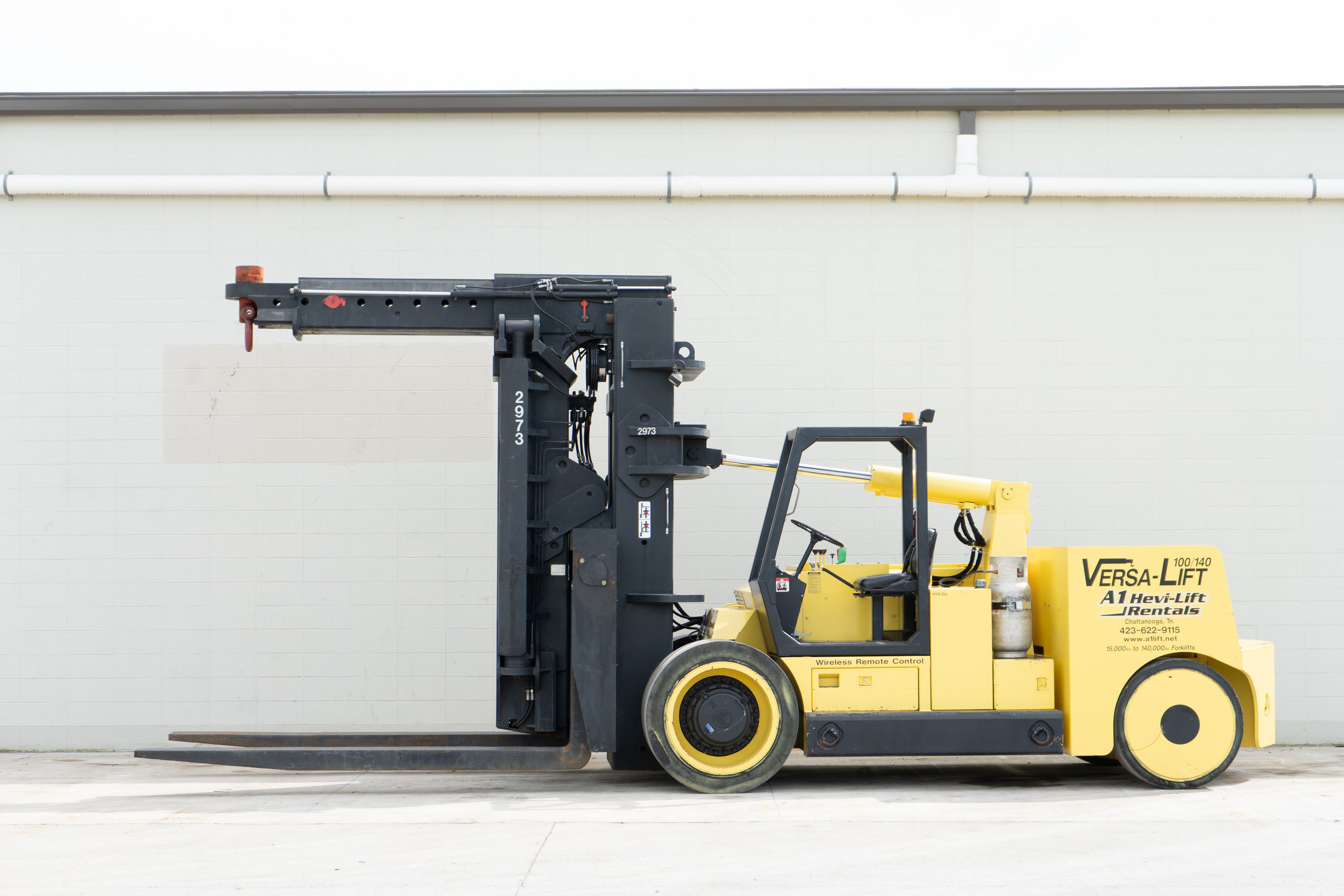

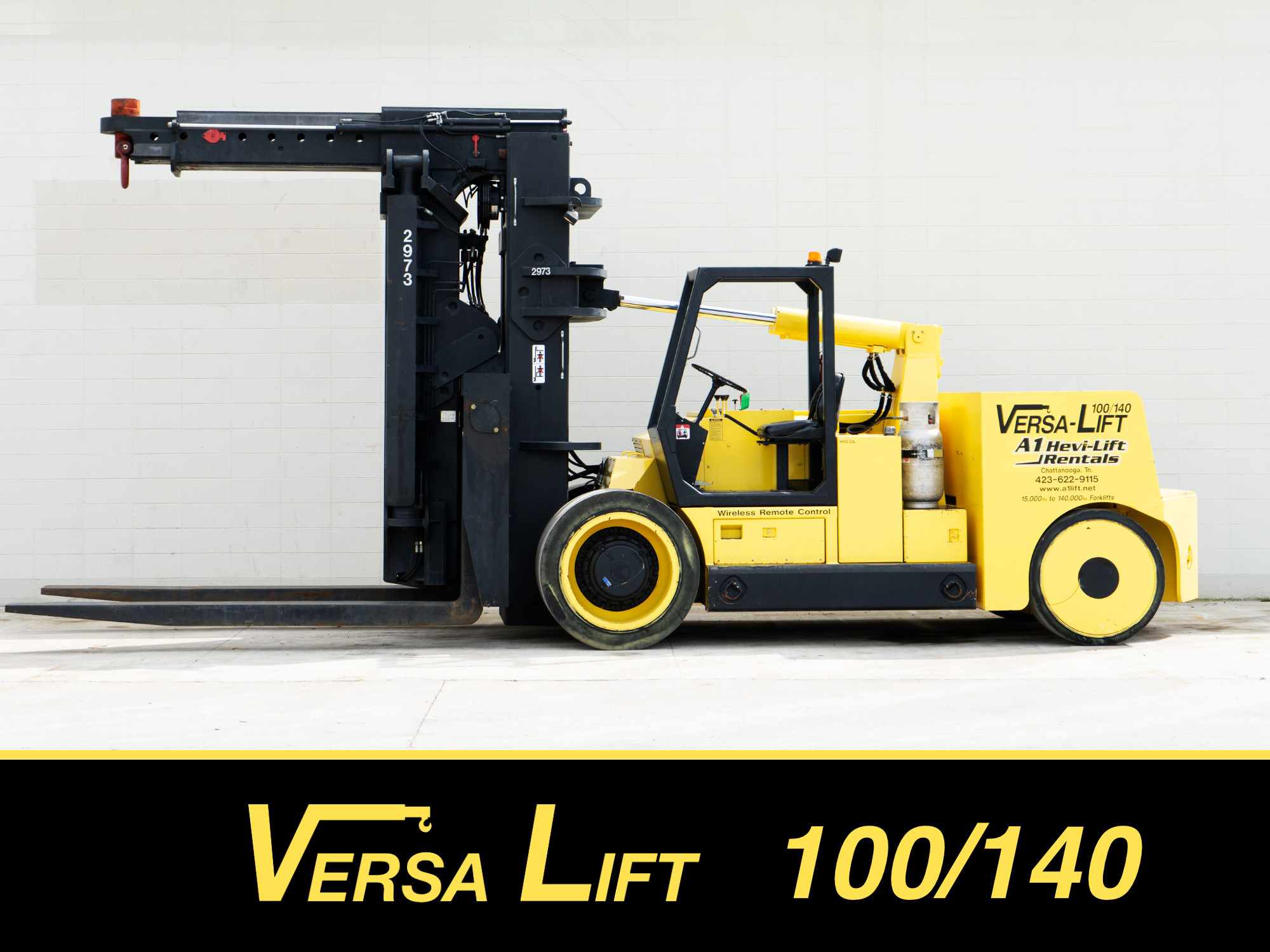

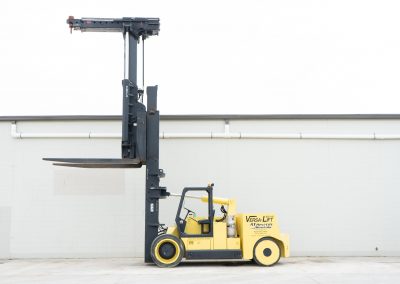

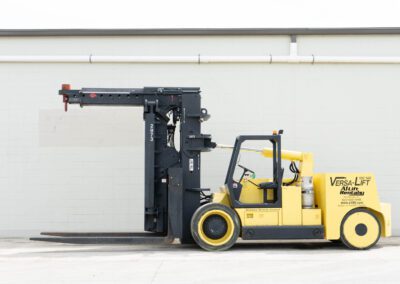

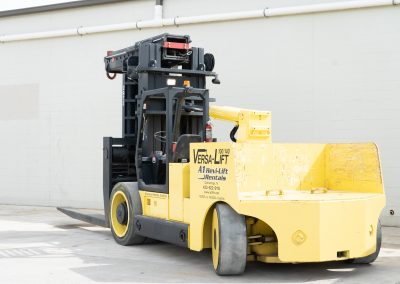

The Versa-Lift 100/140 can handle loads of 85,000 pounds with the base retracted and up to 140,000 pounds with the counter weight fully extended. The hydraulic boom attachment gives the Versa-Lift 100/140 crane capability. The Versa-Lift 100/140 is extremely maneuverable, powerful and easy to use.
Versa-Lift 100/140 Information
| Versa-Lift 100/140 Specs | |
|---|---|
| Engine: | GM 4.3L |
| Transmission: | Rexroth Hydrostatic |
| Drive Axle: | Rockwell Planetary Drive |
| Tires: | Front 42X25X30 Poly Rear 36X14X30 Poly |
| Grade: | Empty 50% Loaded 30% |
| Tilt: | Forward 10° Back 7° |
| Weight: | Gross 128,000 lbs Boom 13,000 lbs Forks 5,100 lbs |
| Vertical Boom Reach: | 31’8’’ (to center of pin) |
| Load Capacity: | 85,000 lbs @ 36″ retracted 115,000 lbs @ 36″ extended 140,000 lbs @ 22″ extended |
| Width: | 96″ |
| Wheelbase: | 126″ retracted 174″ extended |
| Misc: | – Boom removes in minutes with special boom stand – Horizontal boom retracts while using forks – 2-stage direct roller mast |
